Our Products
Two flagship product families, two dedicated plants. Engineered to the most exacting industrial standards.
CHQ Wires
Cold Heading Quality • 2 – 40 mm • 3000 MT/Month
Customised CHQ wire drawn across seven automated machines, supported by in-house pickling, phosphating and bell-type spheroidize annealing — engineered for fasteners, bolts, screws and automotive cold-forging components.
- Diameter range 2 mm – 40 mm (customised)
- Grades: SAE 1006, 1008, 1010, 1018, 10B21, 10B22, 15B25, 20MnB4, ML08Al, ML10, 16MnCr5 and more
- 30 T & 7 T bell-type spheroidized annealing furnaces (1800 MT/M)
- Pickling, phosphating & bond-lube coating in-house
- Skin pass + 100% final inspection before dispatch
CHQ Wire Variants We Offer
Annealed CHQ Wire
Spheroidize annealed in 30 T / 7 T bell-type furnaces for excellent cold formability.
Phosphated & Lube-Coated Wire
Pickled, phosphated and bond-lube coated for extended cold-forging die life.
Drawn Bright CHQ Wire
Multi-pass drawn on IVD-600 / 800 / 900 / 1200 lines to customer-specified tolerances.
Skin-Pass Finished Wire
Final skin-pass for surface and dimensional control before packing.
Request CHQ Wire Quote

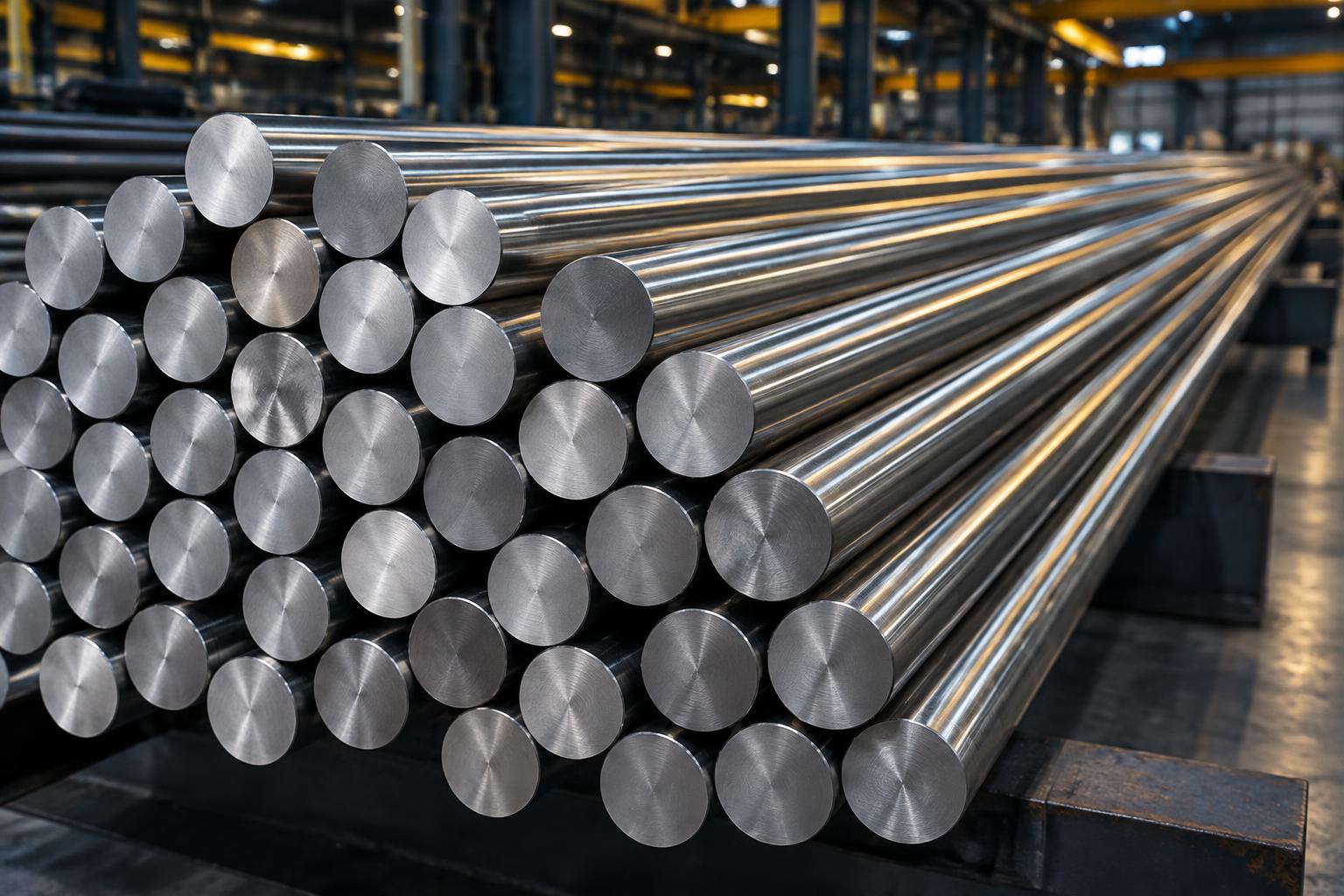

Bright & Ground Bars
Precision Drawn • Round / Hex / Square • 1500 MT/Month
Smooth-finished, dimensionally accurate bars produced on 3 CDL machines, 3 draw benches, and 3 centerless grinding lines — followed by polish and MPI testing for full-length defect inspection.
- Round 7–28 mm, Hex 6–24 mm, Square 10–24 mm
- Grades: EN1A, EN8, EN9, EN19, EN24, EN31, EN36, SAE 1018, 1020, 1045, C45, 16MnCr5, 20MnCr5, 20MnT5, SCM435, SCM440 and more
- Tolerances h8 / h9 / h10 / h11
- Centerless grinding + polish for premium finish
- MPI tested across full bar length
Bar Variants We Offer
Annealed Bar
Stress-relieved, softened bar — ideal feedstock for further machining or forging.
Peeled & Ground Bar
Surface defects removed by peeling, then ground for a clean defect-free finish.

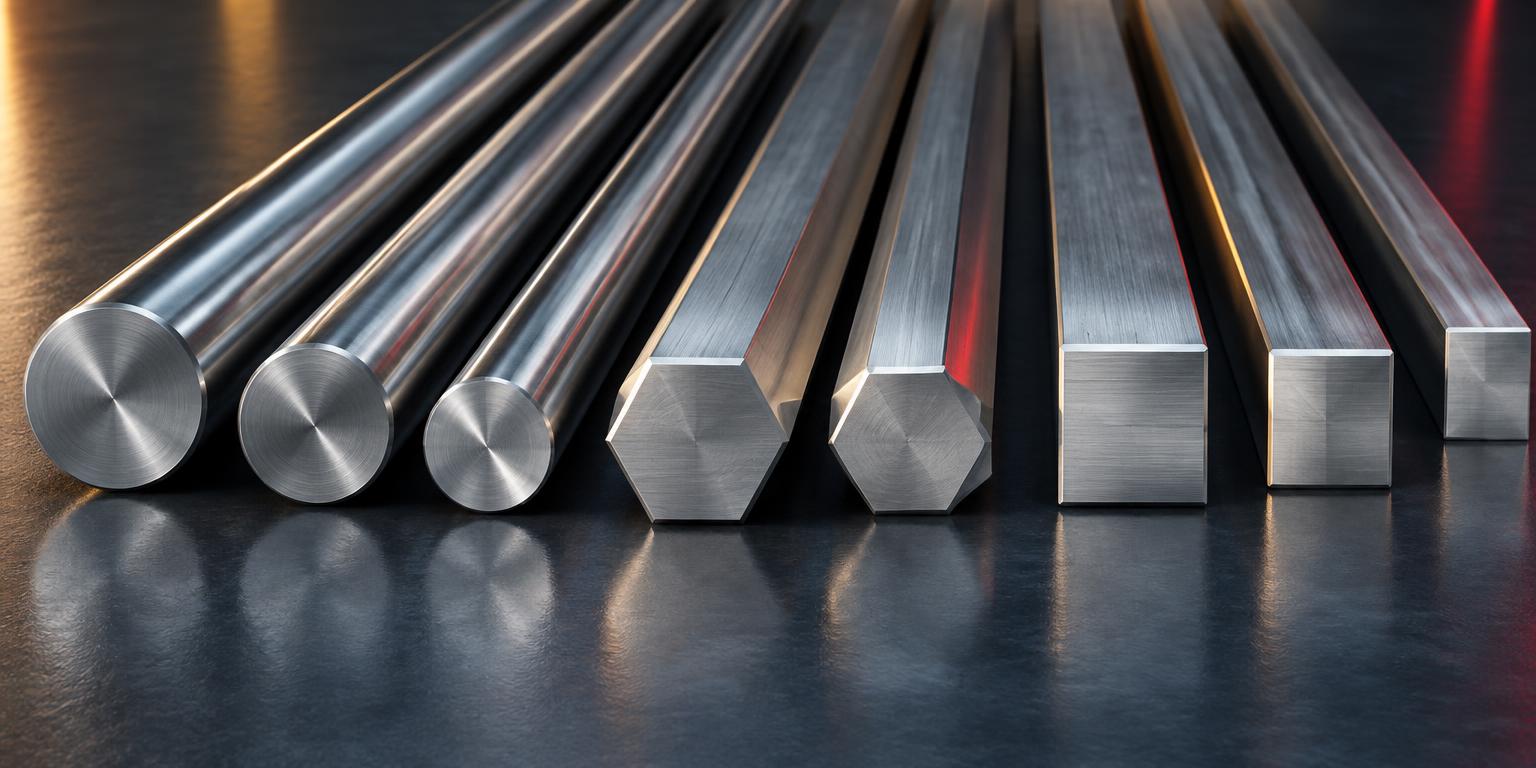

Bright Bar (Round)
Cold-drawn round bar 7–28 mm with tight tolerances (h8/h9/h10/h11).
Hex Bar
Cold-drawn hexagonal bar 6–24 mm — engineered for fasteners and precision hardware.
Profile Bar
Square and custom-profile bars 10–24 mm on the New Big CDL machine.
Request Bright Bar Quote Send Us Your Specification
Our technical team will revert with a custom quote.
